Radio module based on Semtech RFIC SX1262 transceiver.

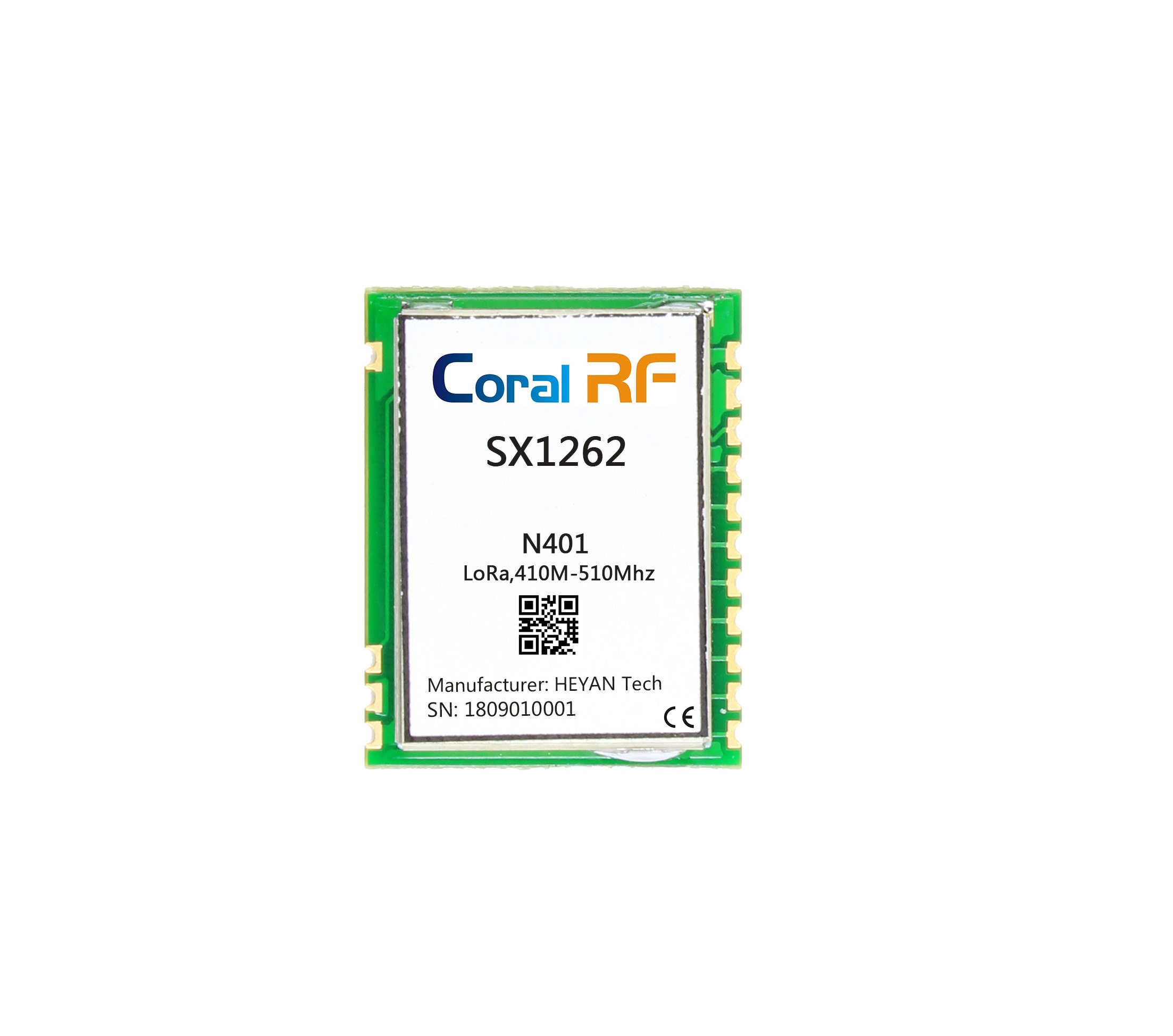

N401AS SX1262 LoRa module designed for 169M, 433M, 868M and 915MHz LoRa band. Up to +22dBm output power and down to -148dBm sensitivity.

N401AS based Semtech RFIC SX1262. 169M, 433M, 868M and 915MHz loRa used. Up to 20dBm output power and down to -148dBm sensitivity. The module leads all pins out of SX1262 for secondary development. The module support LoRaWan and Ardunio.

SX1262 Description

SX1261 and SX1262 sub-GHz radio transceivers are ideal for long range wireless applications. Both devices are designed for long battery life with just 4.2 mA of active receive current consumption. The SX1261 can transmit up to +15 dBm and the SX1262 can transmit up to +22 dBm with highly efficient integrated power amplifiers. These devices support LoRa® modulation for LPWAN use cases and (G)FSK modulation for legacy use cases. The devices are highly configurable to meet different application requirements utilizing the global LoRaWANTM standard or proprietary protocols. The devices are designed to comply with the physical layer requirements of the LoRaWANTM specification released by the LoRa AllianceTM. The radio is suitable for systems targeting compliance with radio regulations including but not limited to ETSI EN 300 220, FCC CFR 47 Part 15, China regulatory requirements and the Japanese ARIB T-108. Continuous frequency coverage from 150 MHz to 960 MHz allows the support of all major sub-GHz ISM bands around the world.

SX1262 Applications

The level of integration and the low consumption within SX1261/2 enable a new generation of Internet of Things applications.

• Smart meters

• Supply chain and logistics

• Building automation

• Agricultural sensors

• Smart cities

• Retail store sensors

• Asset tracking

• Street lights

• Parking sensors

• Environmental sensors

• Healthcare

• Safety and security sensors

• Remote control applications

N401AS Module Parameters

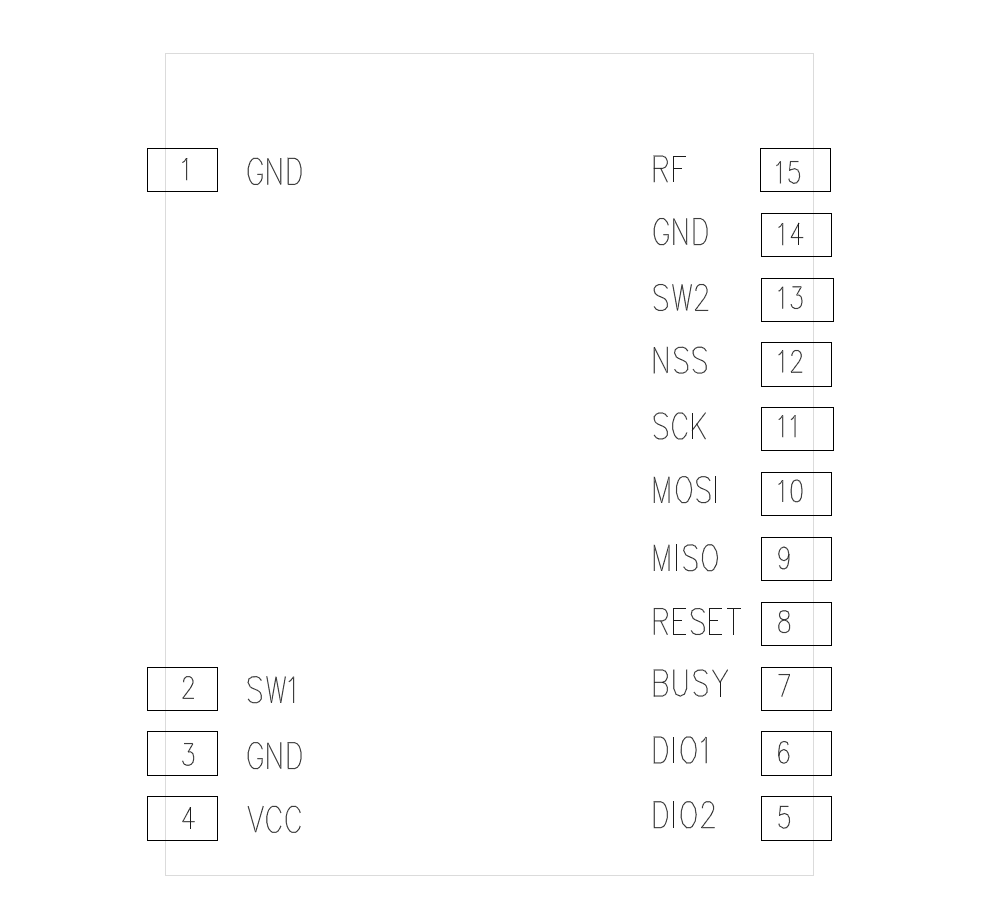

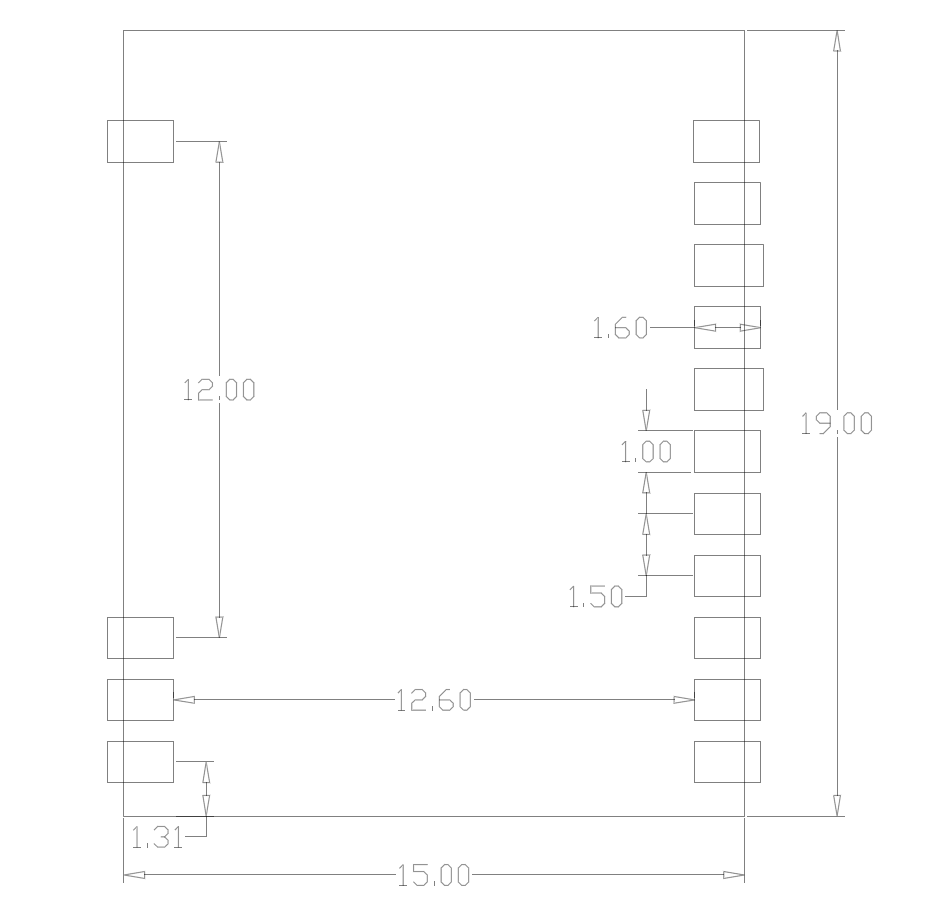

N401AS Module Pinout Description

SX1262 Ordering information

N401AS-169M     Sx1262     LoRa, 22dBm, 160M - 175MHz

N401AS-433M     Sx1262     LoRa, 22dBm, 410M - 480MHz

N401AS-868M     Sx1262     LoRa, 22dBm, 860M - 880MHz

N401AS-915M     Sx1262     LoRa, 22dBm, 910M - 960MHz

Download

N401AS datasheet‍
