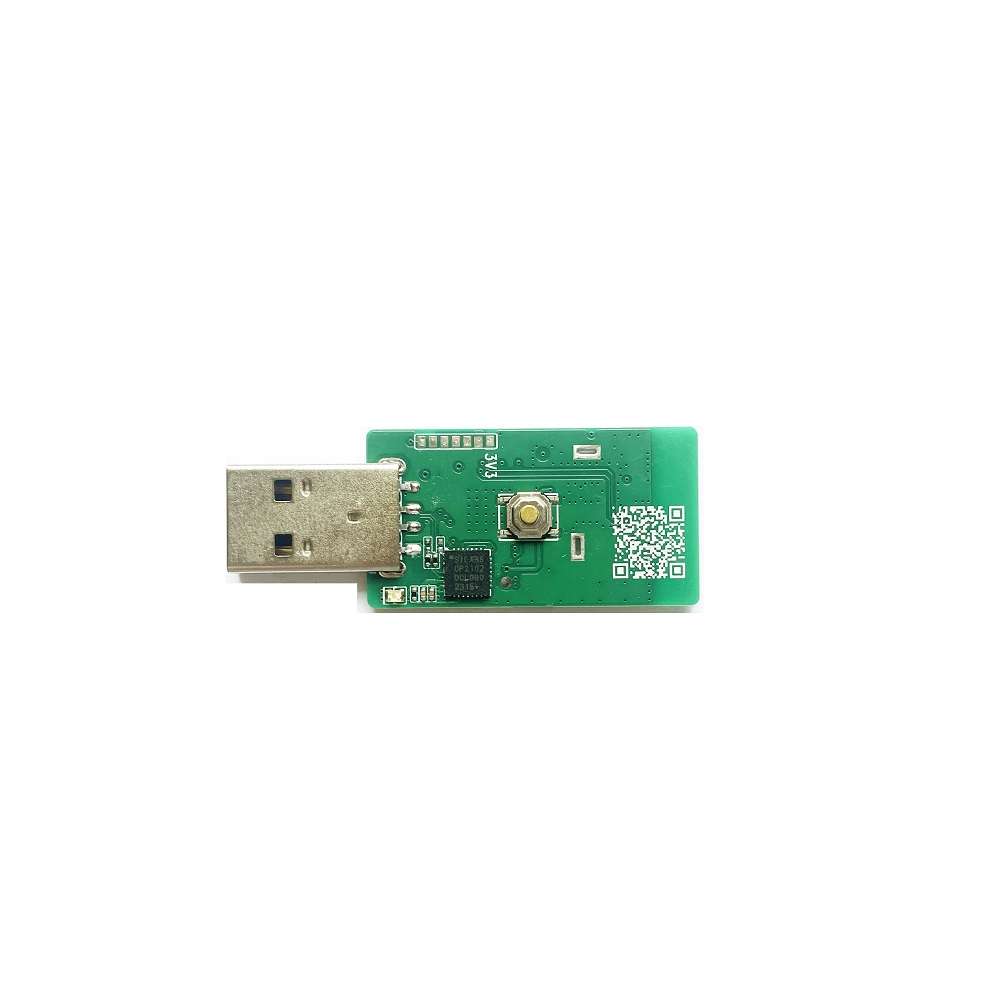

N727AP CC2651P3 Dongle, +20dBm
Amplifier ZigBee dongle based TI ZigBee CC2651P3 wireless MCU.
N727AP-ZB CC2651P3 amplifier ZigBee dongle designed for 2.4G band, ZigBee router or ble 5.2 uesd. The high power ZigBee dongle up to +20 dBm output power and down to -100dBm sensitivity.
N727AP ZigBee dongle USB intergrate CC2652P , two color LED, PCB antenna, USB to UART chip and tact switch. Dongle application ZigBee gateway, router, etc.
N727AP is a small size FSK RF transceiver dongle for transmitting and receiving digital data via radio frequency. All of the N727AP 's electronics reside on a single PCB.
The transceiver dongle based TI wireless MCU CC2651P3, CC2651P3 integrated 2.4G transceiver RF chip. The dongle available frequence is from 2400M --2500Mhz. The hardware is designed for maximum range, 300m + Range (Line of Sight, 500 kbps).
N727AP dongle integrated TI CC2651P3, TCXO, pcb antenna, LED, key, and UART TO USB chip. N727AP dongle supports Multiple protocols, eg: ZigBee and BLE 5.2. AT command supports.
N727AP is suitable for ISM band in China, EU and USA.
CC2651P3 integrated:
• Powerful 48-MHz Arm® Cortex®-M4 processor
• 352KB flash program memory
• 32KB of ultra-low leakage SRAM
• 8KB of Cache SRAM (Alternatively available as general-purpose RAM)
• Programmable radio includes support for 2- (G)FSK, 4-(G)FSK, MSK, Bluetooth® 5.2 Low Energy, IEEE 802.15.4 PHY and MAC
• Supports over-the-air upgrade (OTA)
N727AP Dongle Parameter
Model | N727AP |
dongle Interface | USB 2.0 |
Frequency | 2400M -- 2500Mhz |
RF Data Rate | 1.2-4000 kbps |
Transmitting Power | +20 dBm |
Receiving Sensitivity | -100 dBm at 250 kbps |
TX Current | 80 mA |
RX Current | 6 mA |
Frequency Deviation | +/- 1 khz |
Communication Distance | 10 – 300 m(Visual distance) |
Antenna Interface | IPEX, PCB antenna |
Installation Mode | USB PLUG |
Volume (mm) | 37x19x7mm |
Operating Voltage | + 5 V |
Working Temperature and Humidity Environment | Temperature: -40 - 80 ℃; Humidity 10-95 %RH |
Storage Temperature and Humidity Environment | Temperature: -40 - 80 ℃; Humidity 10-95 %RH |
Weight (kg) | ≈10g |
Application Area
multiprotocol 2.4GHz wireless microcontroller (MCU) supporting
Thread;
Zigbee®;
Bluetooth® 5.2 low energy;
IEEE 802.15.4;
IPv6-enabled smart objects (6LoWPAN)
Ordering Information
N727AP -CC2651P3-2400M RF dongle CC2651P3 100mW – 2400-2500Mhz
Download
For more information please contact with us.
