N534EP-CC1314 Dongle, 14dBm
Radio dongle based CC1314, designed for sub 1G Dongle.
N534EP dongle suitable for 169M, 433M, 868MHz, 915MHz and 1200MHz band.

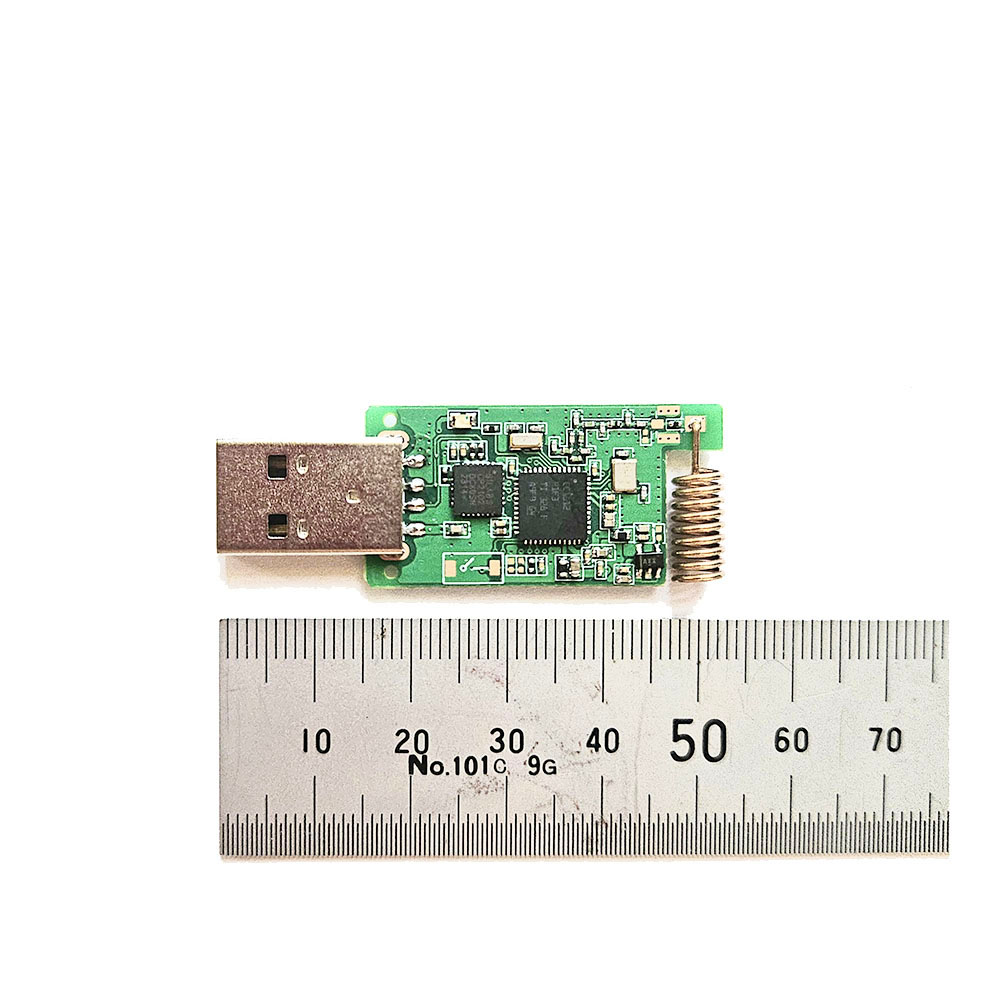

N534EP dongle integrated TI CC1314 and USB to UART chip, which is suitable for 169M, 433M, 915MHz and 868MHz band. CC1314 dongle has the characteristics of low cost, low power consumption and small size. The module is designed with 4-layer board, with excellent impedance matching and anti-interference. The module is mainly for Internet of things, intelligent home, wireless meter reading, scientific research and medical treatment, and medium and long-distance wireless communication equipment. CC1314 dongle leads all pins out for secondary development.
N534EP (CC1314 ) dongle is suitable for free frequency band in EU and America.
| RF Interface | Parameter | Introduce |
| Frequency | 169M, 433M, 868M, 915MHz | Support ISM |
| Output Power | +14dBm | The maximum power 25mW |
| Sensitivity | -110dBm | 50kbps |
| Symbol Rate | 0.3-4000kbps | Software programming control |
| Deviation | +/-10kHz | Antenna interface |
| Distance | 1000m | In clear and open environment, the antenna gain is 3 dBi, the height above the ground is 2.5 meters, and the air speed is 1.2 kbps. |
| Hardware parameters | Value | Remarks |
| Size | 37 x 20 x 7mm | - |
| Antenna Interface | IPEX, stamp hole | - |
| Communication Interface | USB | Software programming |
| Package | USB | - |
| Electrical Parameters | Minimum | Typical | Maximum | Remarks |
| Volt | 5V | |||
| Emission Current | 35mA | Instantaneous power consumption | ||
| Receiving Current | 20mA | - | ||
| Sleep current | Software programming control | |||
| Working Temperature | -30℃ | 75℃ | - |
Module Programming
The schematic diagram of the module base plate can be obtained from our official website.
For debug information please contact with us.
Files download
N534EP CC1314 Datasheet CC1314 Datasheet
Order Information
N534EP-CC1314-169M CC1314R106T0RGZ 160M - 175Mhz 14dBm
N534EP-CC1314-433M CC1314R106T0RGZ 410M - 510Mhz 14dBm
N534EP-CC1314-868M CC1314R106T0RGZ 860M - 930Mhz 14dBm
N534EP-CC1314-1200M CC1314R106T0RGZ 1200M - 1250Mhz 14dBm
