Radio module based TI wireless MCU CC1314R10, PA and LNA.
N533ES CC1314R10 module designed for 169M, 433M, 868M and 915Mhz. Up to 30dBm output power, down to - 112dBm sensitivity.
$15.00
Model N533ES
Modulation FSK
Freqency 169M/433M/779M/868M/915MHz
Output Power 1000mW
Communication interface UART
Package SMD
Brand Coral RF
Size 36X22x3mm
Detail

Radio module based TI wireless MCU CC1314R10, PA and LNA.

N533ES CC1314R10 module designed for 169M, 433M, 868M and 915Mhz. Up to 30dBm output power, down to - 112dBm sensitivity.

N533ES integrated TI CC1314R10 chip, which is suitable for 169M/ 433M/ 868MHz / 915MHz band. CC1314R10 module has the characteristics of low cost, low power consumption and small size. The module is designed with 4-layer board, with excellent impedance matching and anti-interference. The module is mainly for Internet of things, intelligent home, wireless meter reading, scientific research and medical treatment, and medium and long-distance wireless communication equipment. CC1314R10 module leads all pins out for secondary development.


RF InterfaceParameterIntroduce
Frequency433M, 860MHz, 960MHzSupport ISM
Output Power+30dBmThe maximum power 1000 mW
Sensitivity-112dBm-
Symbol Rate0.3-4000kbpsSoftware programming control
Deviation+/-10kHzAntenna interface
Distance8000m

In clear and open environment, the antenna gain is

3 dBi, the height above the ground is 2.5 meters,

and the air speed is 1.2 kbps.


Hardware parametersValueRemarks
Module Size36 x 22 x 3mm-
Antenna InterfaceIPEX, stamp hole-
Communication InterfaceUART, SPISoftware programming
PackageSMD-


Electrical ParametersMinimumTypicalMaximumRemarks
Volt1.8V3.3V3.9V
Emission Current
900mA
Instantaneous power consumption
Receiving Current
6.9mA
-
Sleep current
1uA
Software programming control
Working Temperature-30℃
75℃-


Pin Definition

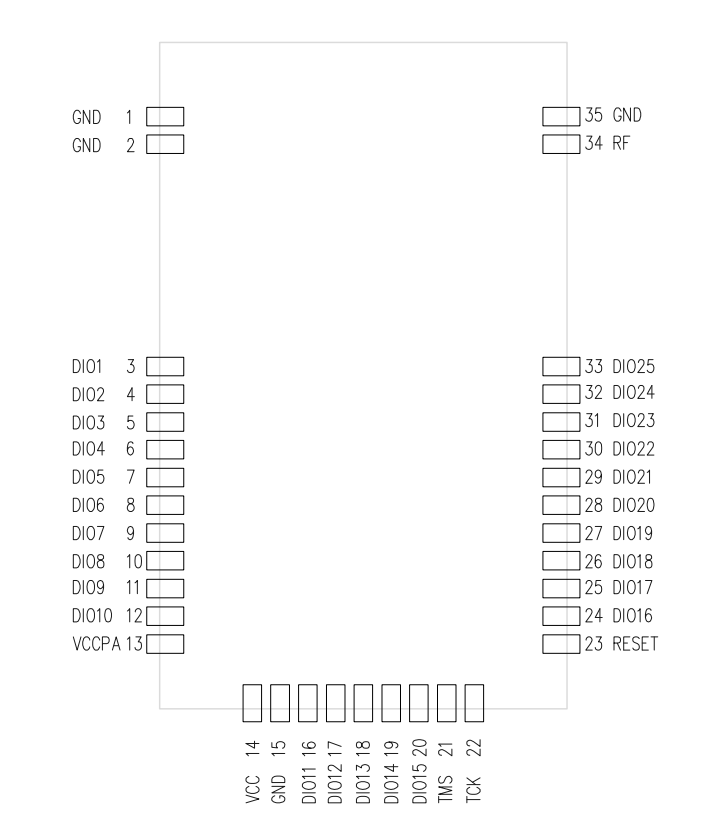

N533ES Module Pinout

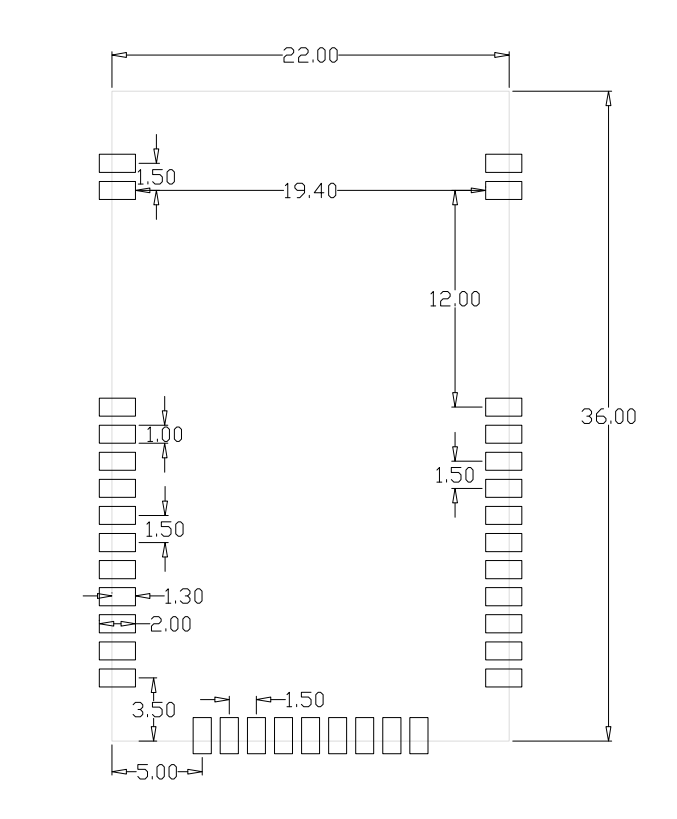

N533ES Package


Files download

N533ES datasheet

Ordering Information

N533ES-CC1314R10-433M         RF Module     CC1314R10(7XD)   30DBM 1000mW – 410-440Mhz

N533ES-CC1314R10-490M         RF Module     CC1314R10(7XD)   30DBM 1000mW – 470-510Mhz

N533ES-CC1314R10-868M         RF Module     CC1314R10(7XD)   30DBM 1000mW – 860-880Mhz

N533ES-CC1314R10-915M         RF Module     CC1314R10(7XD)   30DBM 1000mW – 910-930Mhz
