N532BS-CC1312R Power Amplifier Module, +24dBm

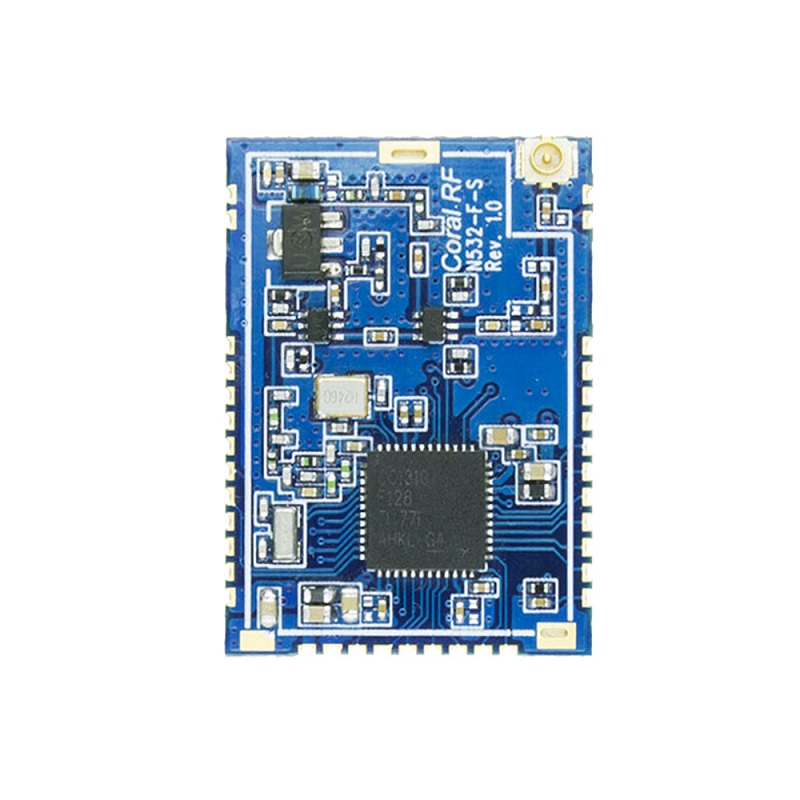

N532BS CC1312R module designed for 169M, 433M, 868M and 915Mhz. Up to +24dBm output power, down to -110dBm sensitivity.
Radio module based TI wireless MCU CC1312R, PA and LNA.
N532BS CC1312R module designed for 169M, 433M, 868M and 915Mhz. Up to 24dBm output power, down to -110dbm sensitivity.
N532BS integrated TI CC1312R chip, which is suitable for 169M/ 433M/ 868MHz / 915MHz band. CC1312R module has the characteristics of low cost, low power consumption and small size. The module is designed with 4-layer board, with excellent impedance matching and anti-interference. The module is mainly for Internet of things, intelligent home, wireless meter reading, scientific research and medical treatment, and medium and long-distance wireless communication equipment. CC1312R module leads all pins out for secondary development.
RF Interface | Parameter | Introduce |
Frequency | 433M, 860MHz, 960MHz, 1200Mhz | Support ISM |
Output Power | +24dBm | The maximum power 200mW |
Sensitivity | -110dBm | - |
Symbol Rate | 0.3-4000 kbps | Software programming control |
Deviation | +/-10kHz | Antenna interface |
Distance | 8000m | In clear and open environment, the antenna gain is 3 dBi, the height above the ground is 2.5 meters, and the air speed is 1.2 kbps. |
Hardware parameters | Value | Remarks |
Module Size | 31 x 22 x 3mm | - |
Antenna Interface | IPEX, stamp hole | - |
Communication Interface | UART, SPI | Software programming |
Package | SMD | - |
Electrical Parameters | Minimum | Typical | Maximum | Remarks |
Volt | 1.8V | 3.3V | 3.9V | |
| PA Volt | 4.5V | 5V | 6V | |
Emission Current | 200mA | Instantaneous power consumption | ||
Receiving Current | 6.9mA | - | ||
Sleep current | 1uA | Software programming control | ||
Working Temperature | -30℃ | 75℃ | - |

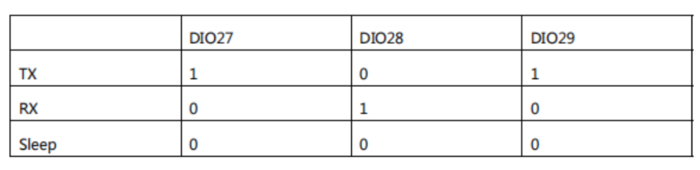

N532BS control Logic
N532BS Pinout Description
Pin Number | Function | Describe |
1 | GND | |
2 | GND | |
3 | DIO1 | |
4 | DIO2 | MCU IO port |
5 | DIO3 | MCU IO port |
6 | DIO4 | MCU IO port |
7 | DIO5 | MCU IO port |
8 | DIO6 | MCU IO port |
9 | DIO7 | MCU IO port |
10 | DIO8 | MCU IO port |
11 | DIO9 | MCU IO port |
12 | DIO10 | MCU IO port |
13 | VCCPA | PA power supply, 3V -- 6V, MAX current: 200mA |
14 | VCC | CC1314R10 power supply, 2V -- 3.6V |
15 | GND | GND |
16 | DIO11 | MCU IO port |
17 | DIO12 | MCU IO port |
18 | DIO13 | MCU IO port |
19 | DIO14 | MCU IO port |
20 | DIO15 | MCU IO port |
21 | TMS | TMS |
22 | TCK | TCK |
23 | RESET | RESET |
24 | DIO16 | MCU IO port |
25 | DIO17 | MCU IO port |
26 | DIO18 | MCU IO port |
27 | DIO19 | MCU IO port |
28 | DIO20 | MCU IO port |
29 | DIO21 | MCU IO port |
30 | DIO22 | MCU IO port |
31 | DIO23 | MCU IO port |
32 | DIO24 | MCU IO port |
33 | DIO25 | MCU IO port |
34 | RF | |
35 | GND |
Files download
N532BS datasheet
Ordering Information
N532BS-CC1312R-433M RF Module CC1312R1F3RGZ 200mW – 410-440Mhz
N532BS-CC1312R-490M RF Module CC1312R1F3RGZ 200mW – 470-510Mhz
N532BS-CC1312R-868M RF Module CC1312R1F3RGZ 200mW – 860-880Mhz
N532BS-CC1312R-915M RF Module CC1312R1F3RGZ 200mW – 910-930Mhz
