N621PA-CC1312R CC1190 Module, +27dBm
    • 1/2

N621PA-CC1312R CC1190 Module, +27dBm

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
copy Link
Facebook
X
LinkedIn
N621PA-CC1312R module based TI Cotex M4 wireless MCU CC1312R and amplifier CC1190, designed for 868MHz 915MHz band. Up to 27dbm output power and down to -112dbm sensitivity. Wmbus support.
$9.90
Model N621PA
Modulation FSK
Freqency 868M/915MHz
Output Power 500mW
Communication interface UART
Package SMD
Brand Coral RF
Size 32X24x3mm
Detail

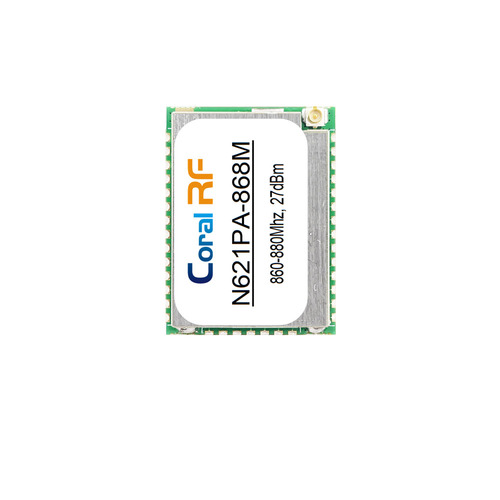

N621PA CC1312R CC1190 module

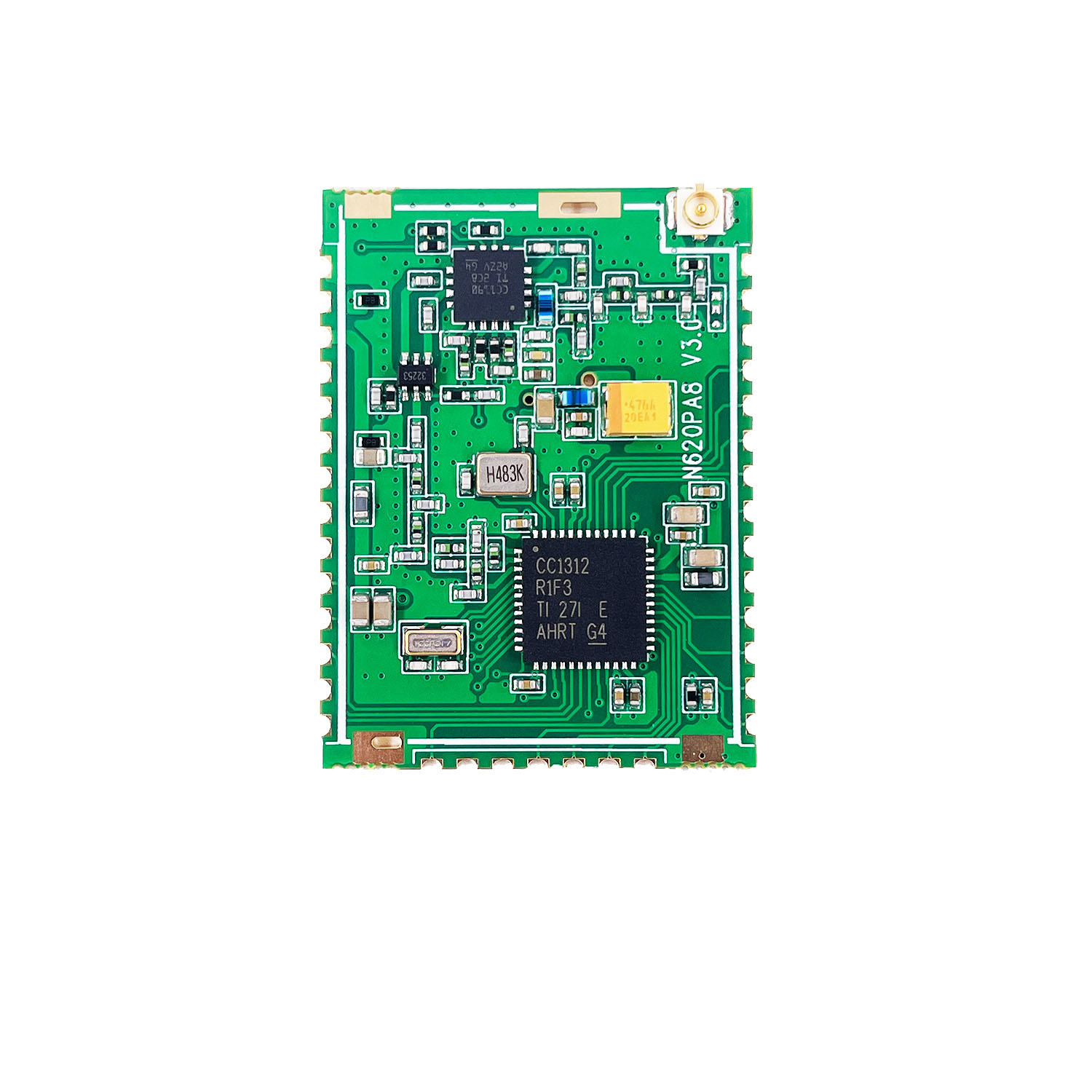

Radio module based TI CC1312R and CC1190.

N621PA CC1312R module designed for 868MHz and 915MHz band. Up to 27dBm output power, 50 kbps sensitivity is -112dBm.

Executive Summary
N621PA represents the pinnacle of Sub-1GHz wireless technology, integrating Texas Instruments' CC1312R wireless MCU and CC1190 RF frontend to deliver exceptional +27dBm output power and industry-leading -112dBm sensitivity. Engineered for reliability and performance, this module sets new standards for long-range wireless communication in industrial IoT applications.

Key Differentiators

  • Maximum Range Performance: 5000+ meters line-of-sight capability

  • Power Efficiency: Advanced power management for battery-operated applications

  • Industrial Robustness: Designed for harsh environmental conditions

  • Rapid Integration: Complete solution reducing time-to-market

Technical Specifications

RF Characteristics

ParameterSpecificationConditions
Frequency Range860-960 MHz, 1200 MHzProgrammable
Output Power+14 to +27 dBmSoftware configurable
Receiver Sensitivity-112 dBm@ 50 kbps

-121 dBm@ 1.2 kbps
Data Rates0.3 to 4000 kbpsSoftware selectable
Modulation2-FSK, 4-FSK, MSK, OOK
Frequency Stability±10 kHzWith crystal oscillator
Harmonic Emission<-45 dBmCompliant with ETSI/FCC

Power Management

ParameterTypicalMaximumConditions
Supply Voltage3.3V2.0-3.6V
TX Current450 mA500 mA@ +27 dBm
RX Current9 mA12 mA
Sleep Current1 μA2 μARAM retention
Power Supply Ripple<50 mV

Physical Characteristics

  • Dimensions: 36.0 × 32.0 × 3.0 mm

  • Weight: 10 grams ±0.5g

  • PCB Material: FR-4, 4-layer construction

  • Surface Finish: ENIG (Electroless Nickel Immersion Gold)

  • Connector: 1.27mm pitch castellated holes

Environmental Specifications

  • Operating Temperature: -30°C to +70°C

  • Extended Temperature: -40°C to +85°C (on request)

  • Storage Temperature: -40°C to +85°C

  • Humidity: 10% to 95% RH (non-condensing)

  • ESD Protection: ±8kV HBM, ±4kV CDM

Pinout Configuration

Power Supply Pins

PinNameDescription
1,35GNDGround reference
2VCCPACC1190 PA supply (2.0-3.6V, 500mA max)
3VDDCC1312R core supply (2.0-3.6V)

Control Interface

PinNameFunction
22RESETActive-low reset input
16TMSJTAG test mode select
17TCKJTAG test clock

GPIO Allocation

  • DIO1-DIO30: Programmable I/O pins

  • UART: DIO2 (RX), DIO3 (TX)

  • SPI: DIO10 (MOSI), DIO11 (MISO), DIO12 (CLK), DIO13 (CS)

  • I2C: DIO14 (SDA), DIO15 (SCL)

RF Interface

PinNameImpedanceDescription
34RF50ΩAntenna port, IPEX connector

Performance Characteristics

Range Performance

EnvironmentDistanceData RateAntenna
Open Field5000 m1.2 kbps3 dBi dipole
Urban1500 m50 kbps3 dBi dipole
Industrial800 m100 kbpsPCB antenna

Regulatory Compliance

  • ETSI EN 300 220: Compliant

  • FCC Part 15.247: Compliant

  • RoHS: Compliant

  • REACH: Compliant

Applications

  • Industrial IoT: Process monitoring, predictive maintenance

  • Smart Energy: AMI, grid monitoring, renewable energy systems

  • Building Automation: HVAC control, access systems, lighting

  • Environmental Monitoring: Agriculture, weather stations, pollution

  • Smart Cities: Parking, waste management, public safety

Ordering Information

Standard Models

Model NumberFrequencyOutput PowerTemperature
N621PA-CC1312R-868M868 MHz+27 dBm-30°C to +70°C
N621PA-CC1312R-915M915 MHz+27 dBm-30°C to +70°C
N621PA-CC1312R-1200M1200 MHz+27 dBm-30°C to +70°C

Custom Options

  • Extended temperature range (-40°C to +85°C)

  • TCXO for improved frequency stability

  • Custom firmware pre-loading

  • Modified pin configurations

Quality & Reliability

  • MTBF: >1,000,000 hours

  • Production Testing: 100% RF performance verification

  • Quality Standards: ISO 9001:2015 certified manufacturing

  • Lead-free: Compatible with standard SMT processes

Development Support

  • Complete SDK with TI SimpleLink development environment

  • Reference designs and application notes

  • Hardware design guidelines

  • Technical support and design review services

Documentation

  • Detailed hardware integration guide

  • RF layout recommendations

  • Antenna design guide

  • Regulatory certification support package

‍

CC1312R CC1190 Module pinout

CC1312R CC1190 ModulePCB Layout
