How to develop CC1311P3 transceiver RF module
CC1311P3 has no DK at present, but CC1353P has DK. Your can refer to the DK of CC1352P to design the PCB of CC1311P3. Used CCS and SDK to develop it.
CC1311P3 Description
The SimpleLink™ CC1311P3 device is a multiprotocol Sub-1 GHz wireless microcontroller (MCU) supporting IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN), mioty, proprietary systems, including the TI 15.4-Stack (Sub-1 GHz). The CC1311P3 is based on an Arm® Cortex® M4 main processor and optimized for low-power wireless communication and advanced sensing in grid infrastructure, building automation, retail automation, personal electronics and medical applications.
The CC1311P3 has a software defined radio powered by an Arm® Cortex® M0, which allows support for multiple physical layers and RF standards. The device supports operation in 143 to 176-MHz, 287 to 351-MHz, 359 to 527-MHz, 861 to 1054-MHz, and 1076 to 1315-MHz frequency bands. The CC1311P3 has an efficient built-in PA that supports +14 dBm TX at 24.9 mA and +20 dBm TX at 65 mA. In RX it has -121 dBm sensitivity and 88 dB blocking ±10 MHz in SimpleLink™ long-range mode with 2.5-kbps data rate.
The CC1311P3 has a low sleep current of 0.7 µA with RTC and 32KB RAM retention.
Consistent with many customers’ 10 to 15 years or longer life cycle requirements, TI has a product life cycle policy with a commitment to product longevity and continuity of supply.
The CC1311P3 device is part of the SimpleLink™ MCU platform, which consists of Wi-Fi®, Bluetooth® Low Energy, Thread, Zigbee, Wi-SUN®, Amazon Sidewalk, mioty, Sub-1 GHz MCUs, and host MCUs. CC1311P3 is part of a scalable portfolio with flash sizes from 32KB to 704KB with pin-to-pin compatible package options. The common SimpleLink™CC13xx and CC26xx Software Development Kit (SDK) and SysConfig system configuration tool supports migration between devices in the portfolio. A comprehensive number of software stacks, application examples and SimpleLink™ Academy training sessions are included in the SDK. For more information, visit wireless connectivity.
CC1311P3 Parameters
ProtocolsMIOTY, WMBUS, TI 15.4, ProprietaryFrequency bands (MHz)143-176, 287-351, 359-527, 861-1054, 1076-1315TX power (Max) (dBm)20RAM (KB)32CPU coreArm® Cortex®-M4Peripherals1 SPI, 1 UART, 1 comparator, 12-bit ADC 8-channel, 4 timers, I2C, I2SSensitivity (best) (dBm)-121GPIO26Data rate (Max) (kbps)2000RatingCatalogOperating temperature range (C)-40 to 105

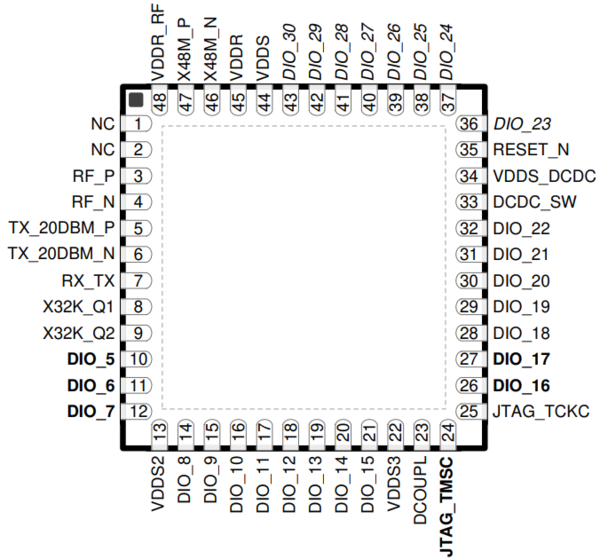

CC1311P3 IC Pinout

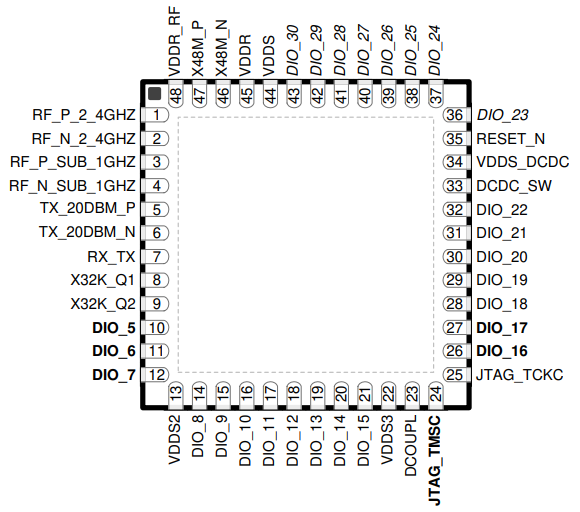

CC1352P IC Pinout

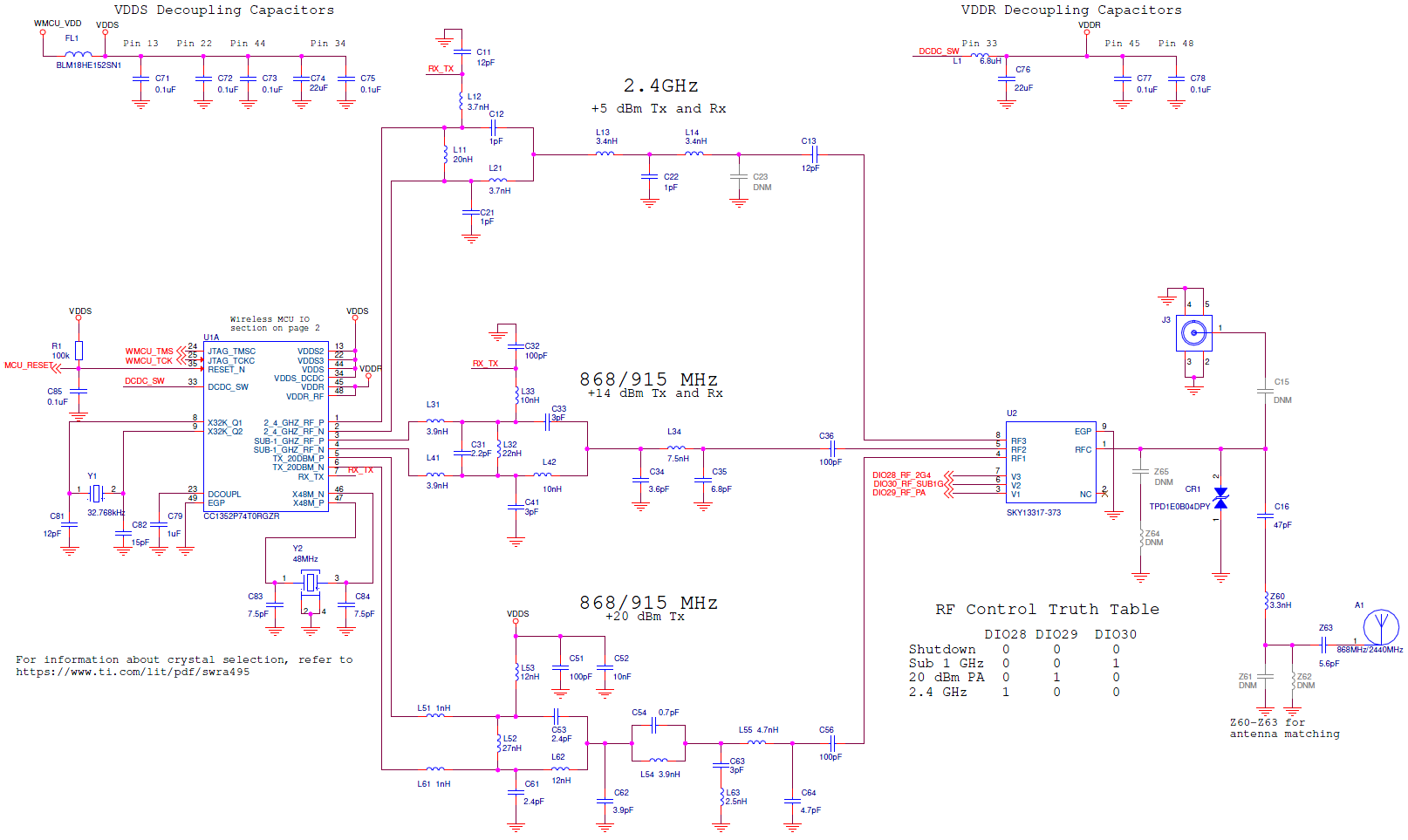

CC1352P SCH
CC1352P change to CC1312P3 SCH
Delete the circuit corresponding to pin 1 and pin 2 of CC1352P Sch, this is the application circuit of CC1311P3 transceiver RF module SCH.
CC1312P3 Software development, Two tools
1. CCSTUDIO — Code Composer Studio™ integrated development environment (IDE)
Code Composer Studio™ software is an integrated development environment (IDE) that supports TI's microcontroller (MCU) and embedded processor portfolios. Code Composer Studio software comprises a suite of tools used to develop and debug embedded applications. The software includes an (...)
2. SOFTWARE DEVELOPMENT KIT (SDK)
SIMPLELINK-CC13XX-CC26XX-SDK — SimpleLink™ CC13xx and CC26xx software development kit (SDK)
The SimpleLink™ CC13xx and CC26xx software development kit (SDK) provides a comprehensive software package for the development of Sub-1 GHz and 2.4 GHz applications including support for Bluetooth® Low Energy, Mesh, Zigbee®, Thread, 802.15.4-based, proprietary, and multiprotocol solutions on (...)
Easylink Example
3. SOFTWARE PROGRAMMING TOOL
UNIFLASH — UniFlash stand-alone flash tool for microcontrollers, Sitara™; processors and SimpleLink™
