N534AP-CC1310 Dongle, +14dBm
    • 1/3

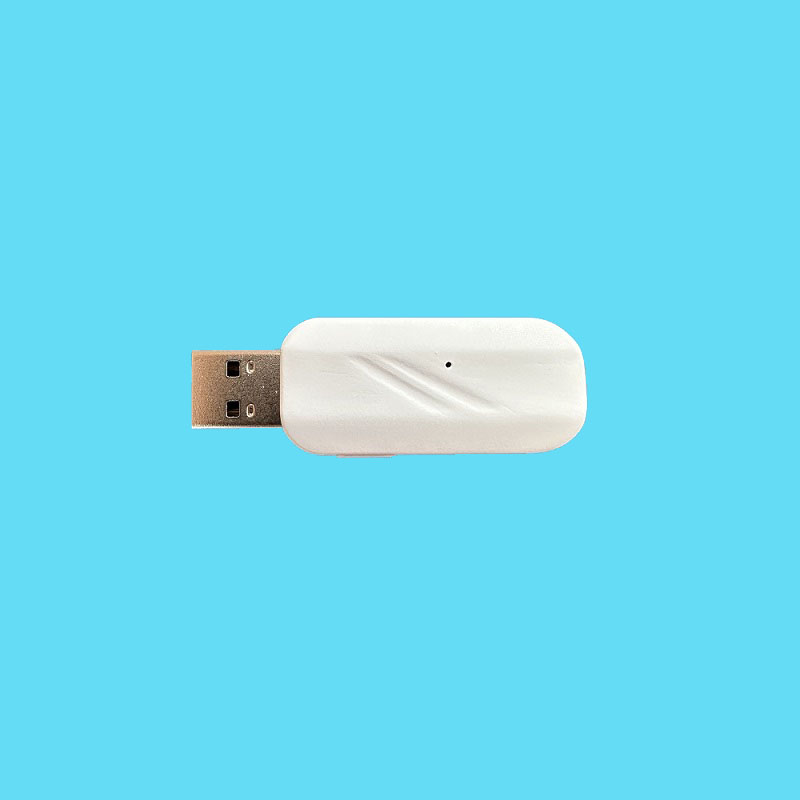

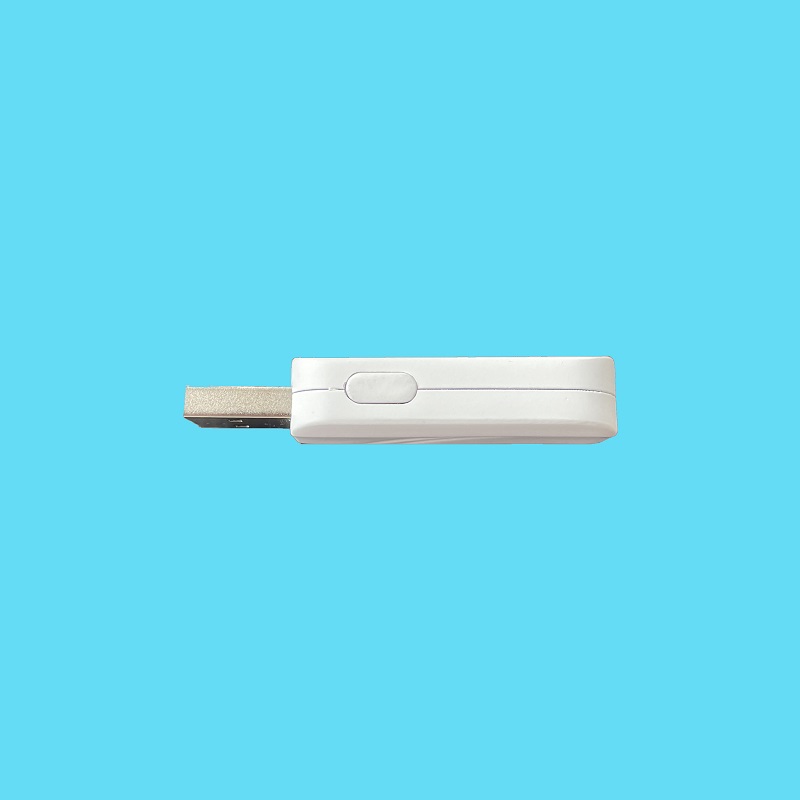

N534AP-CC1310 Dongle, +14dBm

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
copy Link
Facebook
X
LinkedIn
N534CP Dongle based TI CC1311R3 Sub G wireless MCU, designed for 169M, 433M, 868MHz and 915MHz band dongle. Up to 14 dBm output power down to -110dBm sensitivity at 50kbps.
$6.00
Model N534AP
Modulation FSK
Freqency 433M/779M/868M/915MHz
Output Power 20mW
Communication interface USB
Package USB
Brand Coral RF
Size 37x17x7mm
Detail

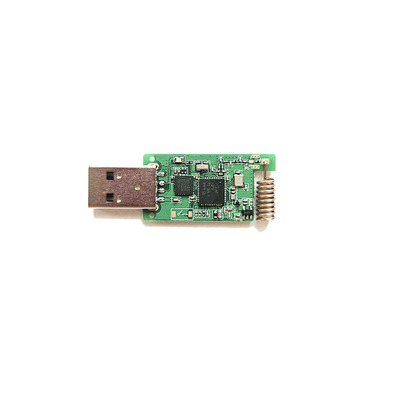

N534AP-CC1310 Dongle,14dBm

Radio Dongle based TI CC1310 wireless MCU.

N534AP-CC1310 Dongle designed for 433M, 868MHz and 915MHz band. USB port used.

Applicable to gateway, sniffer and packet capturing tool.


ProtocolsIEEE 802.15.4, Wireless M-Bus (T, S, C mode), 6LoWPAN, MIOTY
Frequency   bands (MHz)169, 410-510, 860-960
TX   power (Max) (dBm)14
PeripheralsUSB, LED, KEY
RX   current (lowest) (mA)18
TX current   (lowest) (mA)38
Data   rate (Max) (kbps)4000
Operating   temperature range ℃-30 to 75
PackageSMD
Size42 x 18 x 7mm
Antenna   InterfacePCB ANTENNA, IPEX



Download

N534AP USB Dongle datasheet


Ordering information

N534AP-CC1310-433M    CC1310      14DBM

N534AP-CC1310-868M    CC1310      14DBM

N534AP-CC1310-915M    CC1310      14DBM
