N530AS-CC1310 Module,+15dBm

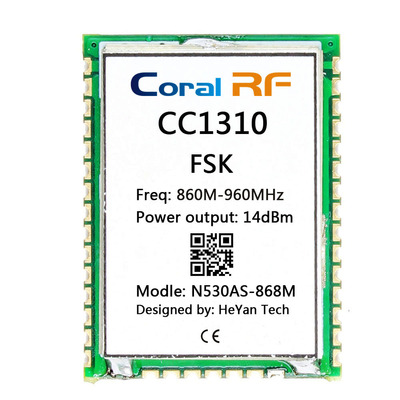

N530AS CC1310F128RGZ transceiver module designed for 433M, 868M, 915MHz. AT command and WMBUS supports.
Radio module based TI CC1310 transceiver chip.
N530AS CC1310F128RGZ transceiver module designed for 433M, 868M, 915MHz. AT command and WMBUS supports.

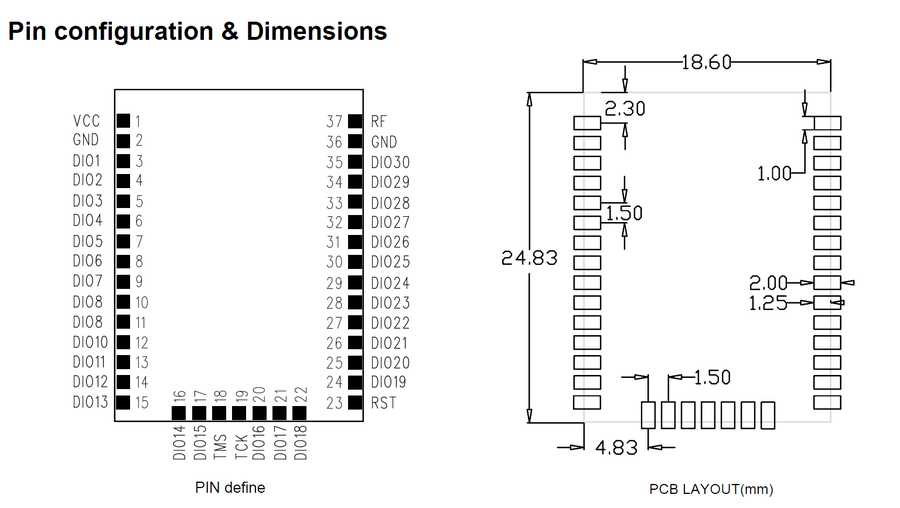

N530AS transceiver module has the characteristics of low cost, low power consumption and small size. Module is mainly for IoT, intelligent home, wireless meter reading, scientific research and medical treatment, and medium and long-distance wireless communication equipment. N530AS leads all pins out of CC1310F128RGZ(7XD) chip for secondary development.
N530AS (CC1310F128RGZ(7XD)) is suitable for free frequency band in EU and USA.
| RF Interface | Parameter |
| Frequency | 433M, 860M, 960MHz |
| Output Power | +14dBm |
| Sensitivity | -124dBm |
| Symbol Rate | 0-4000kbps |
| Deviation | +/-10kHz |
| Distance | 1500m |
| Hardware parameters | Value |
| Module Size | 24.8 x 18.6 x 3mm |
| Antenna Interface | IPEX, stamp hole |
| Communication Interface | UART, SPI |
| Package | SMD |
| Electrical Parameters | Minimum | Typical | Maximum |
| Volt | 1.8V | 3.3V | 4.1V |
| Emission Current | 24mA | ||
| Receiving Current | 5.5mA | ||
| Sleep current | 0.7uA | ||
| Working Temperature | -30℃ | 75℃ |
ISM Frequency supported by N530AS transceiver module
433M band: 433 MHz to 435 MHz (China, EU)
470M band: 470 MHz to 510 MHz (China)
770M band: 770 MHz to 780 MHz (China)
868M band: 868 MHz to 870 MHz (China, EU, USA)
888 MHz to 889 MHz (Australia)
915M band: 902 MHz to 928 MHz (USA)
Downloads
N530AS Ordering information
N530AS-433M CC1310 transceiver chip 14dBm, 410M-510MHz
N530AS-868M CC1310 transceiver chip 14dBm, 860M-960MHz
