N511DS Information

N511DS-169M     CC1200     Narrowband, +15 dBm, 160M - 175 MHz

N511DS-433M     CC1200     Narrowband, +15 dBm, 410M - 480 MHz

N511DS-868M     CC1200     Narrowband, +15 dBm, 860M - 960 MHz

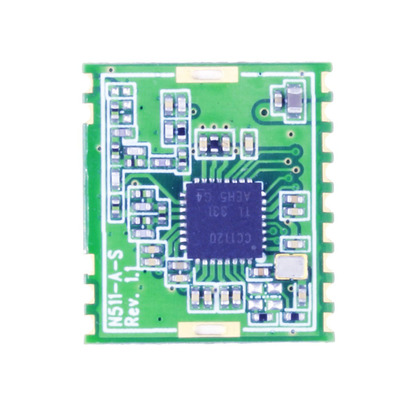

Radio module based TI wireless CC1200 transceiver chip and TCXO crystal.

N511DS CC1200 transceiver module designed for 169MHz, 433M, 868M, 915MHz narrowband. Arduino supports.

CC1200 transceiver module designed by 4-layer board. IoT, intelligent home, wireless meter reading, scientific research and medical treatment, and medium and long-distance wireless communication equipment.

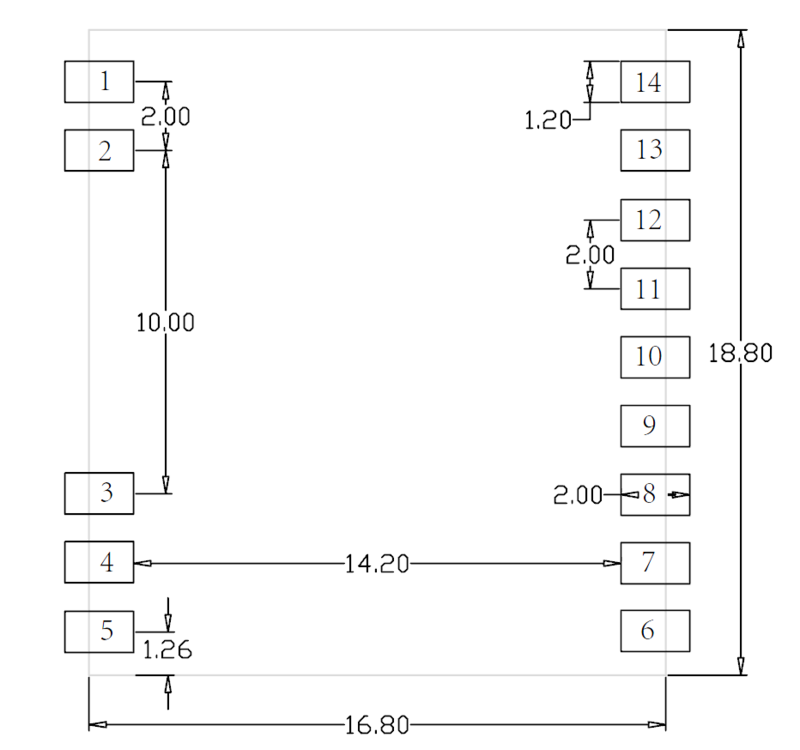

N511DS Module, SPI port, RF pin, SMD package, small size, the module is suitable for SMT production.

Up to 15dBm output power and Sensitivity down to -123dBm.

N511DS leads all pins out of CC1200 for secondary development. Rapid development without understanding RF.

N511DS is suitable for free frequency band in EU and USA.

CC1200 Device Introduce

The CC1200 device is a fully integrated single-chip radio transceiver designed for high performance at very low-power and low-voltage operation in cost-effective wireless systems. All filters are integrated, thus removing the need for costly external SAW and IF filters. The device is mainly intended for the ISM (Industrial, Scientific, and Medical) and SRD (Short Range Device) frequency bands at 164–192 MHz, 274–320 MHz, 410–480 MHz, and 820–960 MHz.

The CC1200 device provides extensive hardware support for packet handling, data buffering, burst transmissions, clear channel assessment, link quality indication, and Wake-On-Radio. The main operating parameters of the CC1200 device can be controlled through an SPI interface. In a typical system, the CC1200 device will be used with a microcontroller and only a few external passive components.

ISM Frequency supported by N511DS module

169M band: 169 MHz to 170 MHz (China, EU)

433M band: 433 MHz to 435 MHz (China, EU)

470M band: 470 MHz to 480 MHz (China)

868M band: 868 MHz to 870 MHz (China, EU, USA)

                       888 MHz to 889 MHz (Australia)

915M band: 902 MHz to 928 MHz (USA)

If you need N511DS module to support other frequencies, please contact us.

RF rate of N511DS module

Narrowband FSK: 0 to 200 Kbps

APPLICATIONS

Sigfox network or point-to-point long distance transmission.

Narrowband system

Arduino device

Narrowband Ultra-Low-Power Wireless Systems

IEEE 802.15.4g Systems

With Channel Spacing Down to 12.5 kHz

Wireless Alarm and Security Systems

169-, 315-, 433-, 868-, 915-, 920-, 950-MHz

Industrial Monitoring and Control ISM/SRD Band

Wireless Healthcare Applications

Wireless Metering and Wireless Smart Grid (AMR and AMI)

Wireless Sensor Networks and Active RFID

Private Mobile Radios

Home and Building Automation

N511DS pin function

Pin Definition

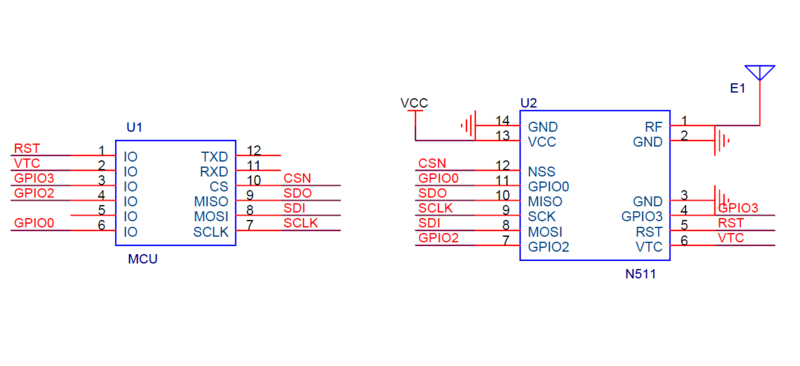

N511DS typical application circuit

N511DS Software code example‍

N511DS datasheet

CC1200 datasheet

Ordering information

N511DS-169M     CC1200     Narrowband, 15dBm, 160M - 175MHz

N511DS-433M     CC1200     Narrowband, 15dBm, 410M - 480MHz

N511DS-868M     CC1200     Narrowband, 15dBm, 860M - 960MHz
