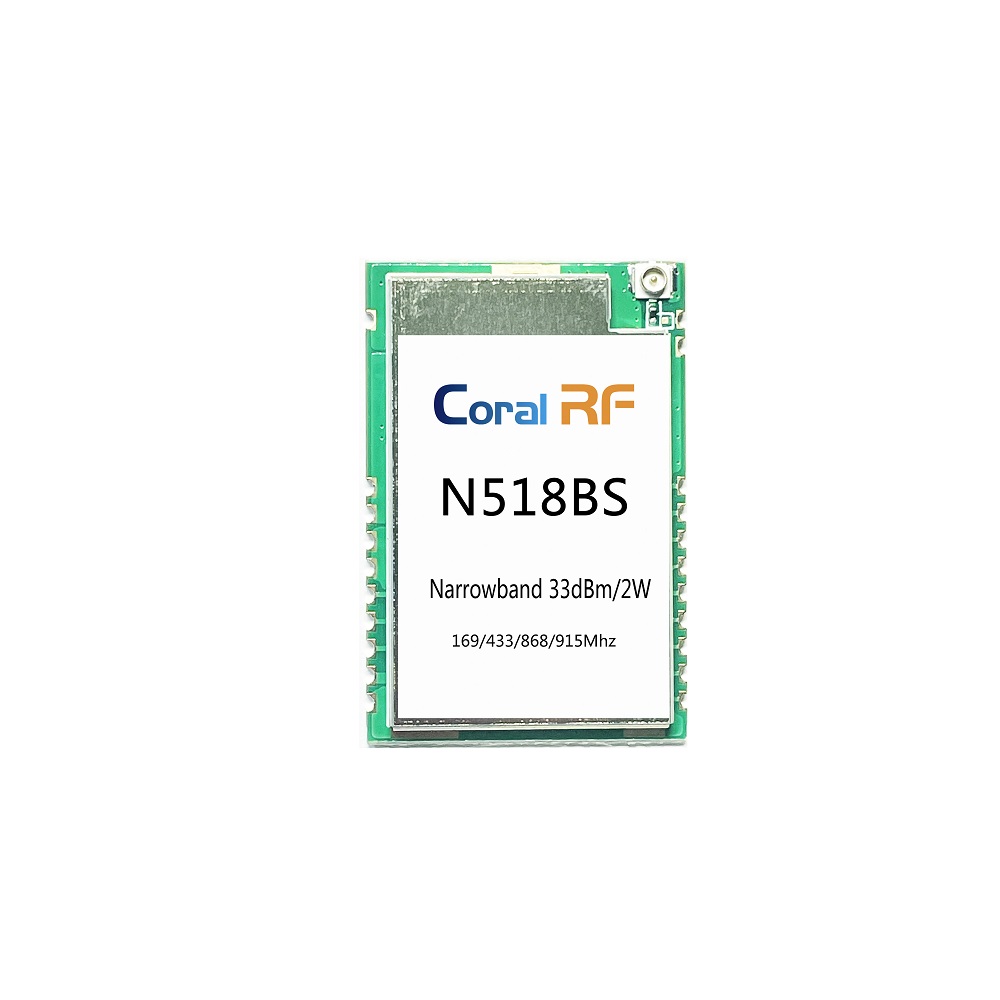

N518BS-CC1125-PA Module,+33dBm
N518BS CC1125 PA transceiver module designed for 169M, 433M, 868M and 915 Mhz narrowband band. The module has +33 dBm output power and the sensitivity down to -126 dBm. WMBUS and Ardunio support.
N518BS CC1125 PA Module Ordering Information
N518BS-CC1125-169M CC1125+PA +33 dBm, Narrowband, 160 - 175 MHz
N518BS-CC1125-433M CC1125+PA +33 dBm, Narrowband, 410 - 480 MHz
N518BS-CC1125-868M CC1125+PA +33 dBm, Narrowband, 860 - 880 MHz
N518BS-CC1125-915M CC1125+PA +33 dBm, Narrowband, 910 - 960 MHz
N518BS radio module based TI CC1125 transceiver, PA, and TCXO crystal.
N518BS CC1125 PA transceiver module designed for 169M, 433M, 868M and 915 Mhz narrowband band. SPI control. The FSK module has +33 dBm output power and the sensitivity down to -126 dBm, WMBUS and Ardunio support.
N518BS module has SMD and plug-in installation mode. The module use narrowband FSK modulation. The N518BS FSK module occupies very little bandwidth.
N518BS hardware is designed for maximum range,12000 m + Range (Line of Sight).
N518BS Module Parameters
Module | Introduce |
Interface | SPI |
Frequency | 169M, 433M, 860 - 960 Mhz |
RF Data Rate | 0 - 200 kbps |
TX Power | +33 dBm |
RX Sensitivity | -126 dBm |
TX Current | 1200 mA |
RX Current | 35 mA |
Frequency Deviation | +/- 2 Khz |
Communication Distance | 10 - 12000 m (Visual distance) |
Antenna Interface | RF pin, SMA |
Installation Mode | SMD, plug-in |
Volume (mm) | 36 mm x 24 mm x 3 mm |
PA Operating Voltage | 4.5 - 5.5 V |
| Operating Voltage | 2 - 3.6 V |
Working Temperature and Humidity Environment | Temperature: -40 - 80℃; Humidity 10 - 95 %RH |
Storage Temperature and Humidity Environment | Temperature: -40 - 80℃; Humidity 10 - 95 %RH |
Weight (kg) | ≈10g |
N518BS pinout Description
Pin name | Description | Pin name | Description | ||
1 | GND | Ground | 12 | RESET | RESET |
2 | VCCPA | 5V | 13 | GPIO3 | MCU I/O |
3 | VCCPA | 2-3.6V | 14 | GPIO2 | MCU I/O |
4 | GND | Ground | 15 | MOSI | SPI |
5 | GND | Ground | 16 | SCK | SPI |
6 | RXEN | MCU I/O | 17 | MISO | SPI |
7 | TXEN | MCU I/O | 18 | GPIO0 | MCU I/O |
8 | LNAEN | MCU I/O | 19 | NSS | MCU I/O |
9 | VCC | 2-3.6V | 20 | GND | GND |
10 | GND | GND | 21 | RF | RF PIN |
11 | VTCXO | MCU I/O |
N518BS Module Package
N518BS Module Packaging Diagram
N518BS Typical Application Circuit
