N516CS-CC1121-CC1190 Module,+27dBm
N516CS CC1121 CC1190 transceiver module designed for 868M and 915 Mhz narrowband band. SPI control. The FSK module has +27 dBm output power and the sensitivity down to -126 dBm, WMBUS and Ardunio support.
N516CS CC1121 CC1190 Module Ordering Information
N516CS-868M CC1121+CC1190 +27 dBm, Narrowband, 860 - 880 MHz
N516CS-915M CC1121+CC1190 +27 dBm, Narrowband, 910 - 960 MHz

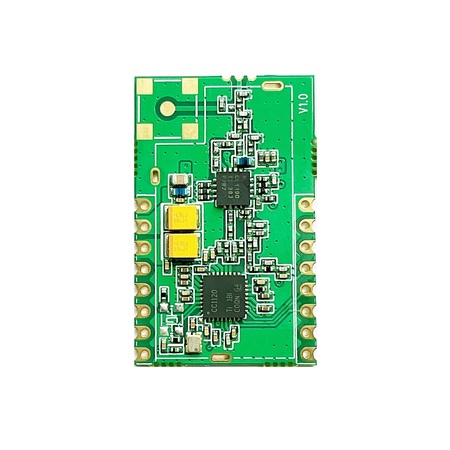

N516CS FSK radio module based TI CC1121 transceiver, CC1190, and TCXO crystal.
N516CS CC1121 CC1190 transceiver module designed for 868M and 915 Mhz narrowband band. SPI control. The FSK module has +27 dBm output power and the sensitivity down to -126 dBm, WMBUS and Ardunio support.
N516CS module has SMD and plug-in installation mode. The module use narrowband FSK modulation. The N516CS FSK module occupies very little bandwidth. N516CS hardware is designed for maximum range,10000 m + Range (Line of Sight).
N516CS Module Parameters
Module | Introduce |
Interface | SPI |
Frequency | 860 - 960 Mhz |
RF Data Rate | 0 - 200 kbps |
TX Power | +27 dBm |
RX Sensitivity | -126 dBm |
TX Current | 500 mA |
RX Current | 28 mA |
Frequency Deviation | +/- 2 Khz |
Communication Distance | 10 - 10000 m (Visual distance) |
Antenna Interface | RF pin, SMA |
Installation Mode | SMD, plug-in |
Volume (mm) | 36 mm x 23 mm x 3 mm |
Operating Voltage | 2 - 3.6 V |
Working Temperature and Humidity Environment | Temperature: -40 - 80℃; Humidity 10 - 95 %RH |
Storage Temperature and Humidity Environment | Temperature: -40 - 80℃; Humidity 10 - 95 %RH |
Weight (kg) | ≈10g |

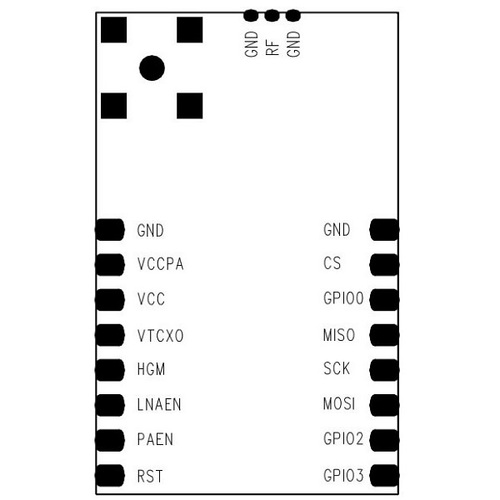

N516CS pinout Description
Pin name | Description | Pin name | Description | ||
1 | GND | Ground | 9 | GPIO3 | MCU I/O |
2 | VCCPA | 2-3.9V | 10 | GPIO2 | MCU I/O |
3 | VCC | 2-3.6V | 11 | MOSI | SPI |
4 | TCXO | MCU I/O | 12 | SCK | SPI |
5 | HGM | MCU I/O | 13 | MISO | SPI |
6 | LNAEN | MCU I/O | 14 | GPIO0 | MCU I/O |
7 | PAEN | MCU I/O | 15 | CS | SPI |
8 | RESET | MCU I/O | 16 | GND | Ground |

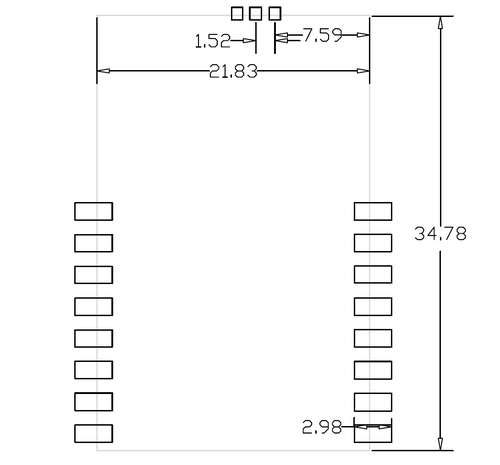

N516CS Module Package
N516CS Module Packaging Diagram
N516CS Typical Application Circuit
