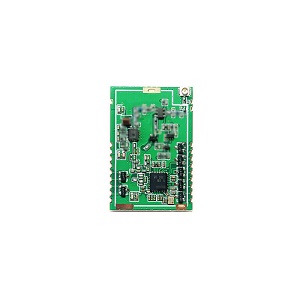

N518AS-CC1120-PA Module,+33dBm
N518AS CC1120 PA transceiver module designed for 169M, 433M, 868M and 915 Mhz narrowband band. The module has +33 dBm output power and the sensitivity down to -126 dBm. WMBUS and Ardunio support.
N518AS CC1120 PA Module Ordering Information
N518AS-CC1120-169M CC1120+PA +33 dBm, Narrowband, 160 - 175 MHz
N518AS-CC1120-433M CC1120+PA +33 dBm, Narrowband, 410 - 480 MHz
N518AS-CC1120-868M CC1120+PA +33 dBm, Narrowband, 860 - 880 MHz
N518AS-CC1120-915M CC1120+PA +33 dBm, Narrowband, 910 - 960 MHz
N518AS radio module based TI CC1120 transceiver, PA, and TCXO crystal.
N518AS CC1120 PA transceiver module designed for 169M, 433M, 868M and 915 Mhz narrowband band. SPI control. The FSK module has +33 dBm output power and the sensitivity down to -126 dBm, WMBUS and Ardunio support.
N518AS module has SMD and plug-in installation mode. The module use narrowband FSK modulation. The N518AS FSK module occupies very little bandwidth.
N518AS hardware is designed for maximum range,12000 m + Range (Line of Sight).
N518AS Module Parameters
Module | Introduce |
Interface | SPI |
Frequency | 169M, 433M, 860 - 960 Mhz |
RF Data Rate | 0 - 200 kbps |
TX Power | +33 dBm |
RX Sensitivity | -126 dBm |
TX Current | 1200 mA |
RX Current | 35 mA |
Frequency Deviation | +/- 2 Khz |
Communication Distance | 10 - 12000 m (Visual distance) |
Antenna Interface | RF pin, SMA |
Installation Mode | SMD, plug-in |
Volume (mm) | 36 mm x 24 mm x 3 mm |
PA Operating Voltage | 4.5 - 5.5 V |
| Operating Voltage | 2 - 3.6 V |
Working Temperature and Humidity Environment | Temperature: -40 - 80℃; Humidity 10 - 95 %RH |
Storage Temperature and Humidity Environment | Temperature: -40 - 80℃; Humidity 10 - 95 %RH |
Weight (kg) | ≈10g |
N518AS pinout Description
Pin name | Description | Pin name | Description | ||
1 | GND | Ground | 12 | RESET | RESET |
2 | VCCPA | 5V | 13 | GPIO3 | MCU I/O |
3 | VCCPA | 2-3.6V | 14 | GPIO2 | MCU I/O |
4 | GND | Ground | 15 | MOSI | SPI |
5 | GND | Ground | 16 | SCK | SPI |
6 | RXEN | MCU I/O | 17 | MISO | SPI |
7 | TXEN | MCU I/O | 18 | GPIO0 | MCU I/O |
8 | LNAEN | MCU I/O | 19 | NSS | MCU I/O |
9 | VCC | 2-3.6V | 20 | GND | GND |
10 | GND | GND | 21 | RF | RF PIN |
11 | VTCXO | MCU I/O |
N518AS Module Package
N518AS Module Packaging Diagram

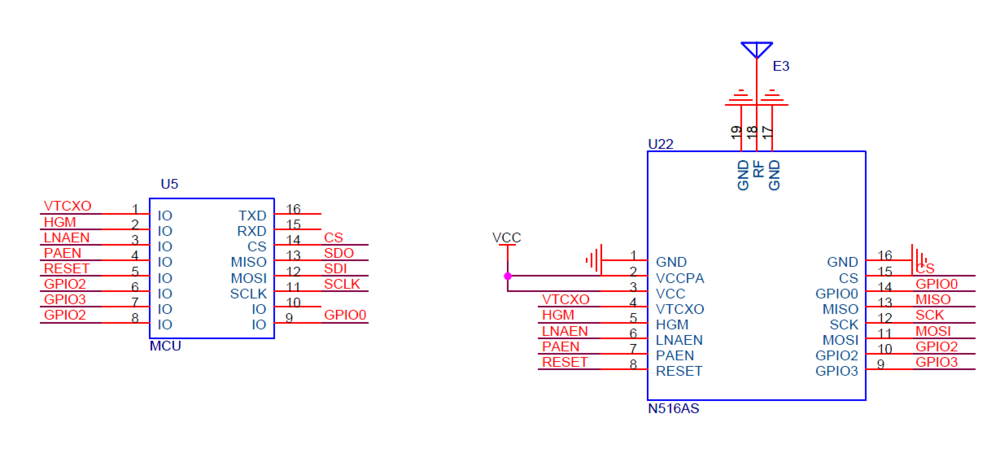

N518AS Typical Application Circuit
