N502FS Module Introduce

N502FS high power radio module based ADIADF7023 transceiver, high power PA and LNA.

N502FS highpower ADF7023 transceiver synchronous transmission module designed for433M, 868M and 915Mhz band. Up to +33 dBm output power, down to - 113dbmsensitivity. AT command support.

N502FS integrated ADI ADF7023 synchronous transmission transceiver chip, which issuitable for 868MHz / 915MHz band. ADF7023 high power module has thecharacteristics of low cost, low power consumption and small size. The moduleis designed with 4-layer board, with excellent impedance matching andanti-interference. The module is mainly for Internet of things, intelligenthome, wireless meter reading, scientific research and medical treatment, andmedium and long-distance wireless communication equipment. ADF7023 module leadsUART, SPI and IO pins out for secondary development.

N502FS High Power Module Feature

UART Rate: 115200

Sport mode

Low power mode

Frequency bands : 862 MHz to 928 MHz, 431 MHz to 464 MHz

BW: 100 kHz, 150 kHz, 200 kHz, 300 kHz

Maximum number of bytes in a single frame: 3072 byte

High Power PA VCC : 3 - 5V

SMD package

Size: 42 X 24 X 3 mm

RF port: ipex or RF pin

N502FS ADF7023 Module Parameters

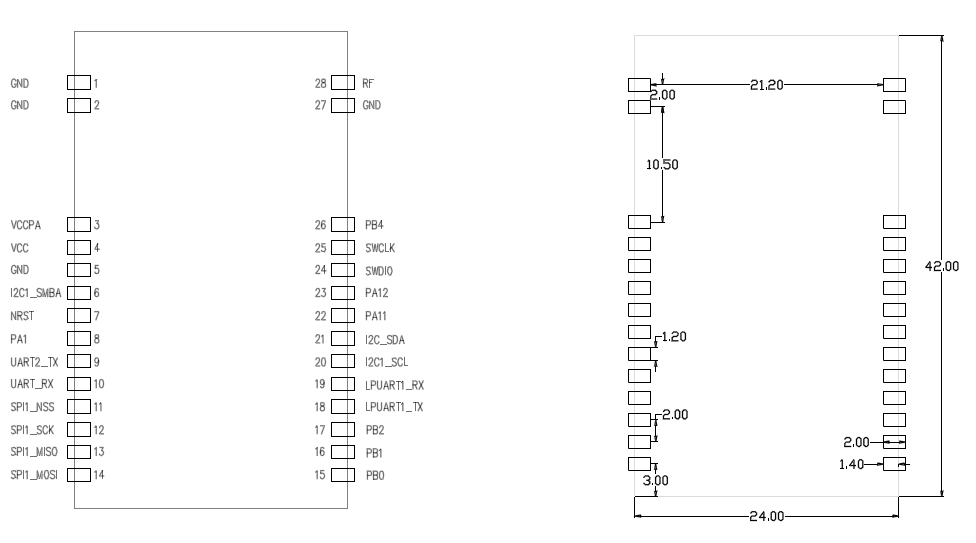

N502FS Pinout Package

Files download

N502FS datasheet‍
